Multilevel dropdown menu with responsive design creating in ReactJS

Multilevel dropdown menus are a staple of web design. With the ability to provide multiple options to select from, they make navigation bars dynamic and organized.  For any developer working in React or any React-based project like Gatsby or Next.js, this tutorial covers the step-by-step process of how to implement the dropdown feature in a React project.

Setting up the React project

Let’s start by creating a new React project called multilevel-menu by running the following command:

npx create-react-app multilevel-menu

Once the project generates, navigate inside the project folder using cd multilevel-menu or simply open the project with a code editor.

Then, run the npm start built-in command to start the project in development mode. The app should launch in the browser at http://localhost:3000.

Creating the project files

Head over to the src folder and delete all the files except the index.js. Next, create a folder called components inside the src and add the following component files:  DropDownMenu.js, MenuItem.js and DropDownSubMenu.js.

In the App.js file, add the following starting code:

import React from 'react';

import { Container, Nav, Navbar, Row, Col, NavDropdown } from 'react-bootstrap';
import './App.css';
import { DropDownMenu } from './components/Dropdownmenu';
import { DropDownSubMenu } from './components/dropdownsubmenu';

const App = () => (
  <>
    <Navbar bg="dark" expand="lg" variant="dark">
      <Container>
        <Navbar.Brand href="#home">Devhubspot</Navbar.Brand>
        <Navbar.Toggle aria-controls="basic-navbar-nav" />
        <Navbar.Collapse id="basic-navbar-nav">
          <Nav className="me-auto">
            <Nav.Link href="#home">Home</Nav.Link>
            <DropDownMenu title="Services" id="collasible-nav-dropdown">
              <NavDropdown.Item href="#action/3.1">Web Development</NavDropdown.Item>
              <DropDownSubMenu href="#action/3.7" title="Deisgn">
                <NavDropdown.Item href="#action/8.1">Html</NavDropdown.Item>
                <NavDropdown.Item href="#action/8.2">CSS</NavDropdown.Item>
                <DropDownSubMenu href="#action/3.7" title="Development">
                  <NavDropdown.Item href="#action/9.1">Javascript</NavDropdown.Item>
                  <NavDropdown.Item href="#action/9.2">Jquery</NavDropdown.Item>
                </DropDownSubMenu>
              </DropDownSubMenu>
            </DropDownMenu>
          </Nav>
          <Nav>
          <DropDownMenu title="Product" id="collasible-nav-dropdown" alignRight>
              <DropDownSubMenu href="#action/3.7" title="Language">
                <NavDropdown.Item href="#action/8.1">React</NavDropdown.Item>
                <NavDropdown.Item href="#action/8.2">Anguler</NavDropdown.Item>
                <NavDropdown.Item href="#action/8.3">Ionic</NavDropdown.Item>
                <DropDownSubMenu href="#action/3.7" title="backend">
                  <NavDropdown.Item href="#action/9.1">Nodejs</NavDropdown.Item>
                  <NavDropdown.Item href="#action/9.1">PHP</NavDropdown.Item>
                  <NavDropdown.Item href="#action/9.1">JAVA</NavDropdown.Item>
                </DropDownSubMenu>
              </DropDownSubMenu>
            </DropDownMenu>
          </Nav>
        </Navbar.Collapse>
      </Container>
    </Navbar>

    <Container>
      <Row>
        <Col>
          <h1>React Multi Level Dropdown Menu With Mobile responsive</h1>
        </Col>
      </Row>
    </Container>
  </>
);

export default App;

Open the components/DropDownSubMenu.js file and add the following code:

import * as React from 'react';

export const DropDownSubMenu = (props) =>{
    let refSubMenuContent = React.useRef(HTMLDivElement);

    let className = 'dropdown-submenu-container';
    className = props.className
      ? className + ' ' + props.className
      : className;

  const onClick = (event) => {
    event.preventDefault();
    event.stopPropagation();

    if (refSubMenuContent.current) {
      let show = false;
      if (refSubMenuContent.current.classList.contains('show')) {
        hideChildren(refSubMenuContent.current);
      } else {
        show = true;
        hideSiblings();
      }
      refSubMenuContent.current.classList.toggle('show');
      if (typeof props.onToggle === 'function') {
        props.onToggle(show, { source: 'select' , originalEvent: event});
      }
    }
  };

  const hideSiblings = () => {
    if (refSubMenuContent.current) {
      const parents = getParents(
          refSubMenuContent.current,
          '.dropdown-menu.show'
      );
      if (parents.length > 1) {
        hideChildren(parents[1]);
      }
    }
  };

  const hideChildren = (parent) => {
    const children = parent.querySelectorAll('.dropdown-menu.show');
    for (const child of children) {
      child.classList.remove('show');
    }
  }

  const getParents = (elem, selector) => {
    const nodes = [];
    let element = elem;
    nodes.push(element);
    while (element.parentNode) {
      if (
          typeof element.parentNode.matches === 'function' &&
          element.parentNode.matches(selector)
      ) {
        nodes.push(element.parentNode);
      }
      element = element.parentNode;
    }
    return nodes;
  }

    return (
      <div className={className} id={props.id}>
        <a
          href={props.href}
          className="dropdown-item dropdown-submenu dropdown-toggle"
          onClick={onClick}
        >
          {props.title}
        </a>
        <div
          className="dropdown-menu"
          ref={refSubMenuContent}
        >
          {props.children}
        </div>
      </div>
    );
}

Open the components/MenuItems.js file and add the following code:

import * as React from 'react';
import { Dropdown } from 'react-bootstrap';


export const MenuItem  = (props) =>{

    const onSelect = (event) => {
        if (typeof props.onSelect === 'function') {
          props.onSelect(event);
        }
      };

      return (
          <Dropdown.Item
            id={props.id}
            href={props.href}
            title={props.title}
            className={props.className}
            onSelect={onSelect}
            active={props.active}
            disabled={props.disabled}
            onClick={props.onClick}
          >
            {props.children}
          </Dropdown.Item>
        );
}

Let’s now open the components/DropDownMenu.js file and access the prop so we can render the menu like so:

import * as React  from 'react';
import { NavDropdown } from 'react-bootstrap';

export const DropDownMenu = (props) =>{
    let divEl = React.useRef(HTMLDivElement);

  const onToggle = (
      show,
      meta
  ) => {
    if (divEl.current) {
      if (show === false) {
        const element = divEl.current;
        if (element) {
          const children  = element.querySelectorAll('.dropdown-menu.show');
          // @ts-ignore
          for (const child of children) {
            child.classList.remove('show');
          }
        }
      }
    }
    if (typeof props.onToggle === 'function') {
      props.onToggle(show,  meta);
    }
  };
  return (
      <NavDropdown
        ref={divEl}
        className={props.className}
        title={props.title}
        id={props.id}
        onToggle={onToggle}
        align={props.alignRight ? "end" : undefined}
        disabled={props.disabled}
        active={props.active}
        menuRole={props.menuRole}
        renderMenuOnMount={props.renderMenuOnMount}
        rootCloseEvent={props.rootCloseEvent}
        bsPrefix={props.bsPrefix}
        drop={props.drop}
        show={props.show}
        focusFirstItemOnShow={props.focusFirstItemOnShow}
      >
        {props.children}
      </NavDropdown>
    );
}

Open the src/app.css file and temporarily comment-out the display: none; part of the CSS:

.header {
  text-align: center;
}

#nav {
  background-color: red;
  color: red;
}

.toast {
  margin: 0 auto;
}

.custom-btn-toolbar {
  display: inline !important;
}

.custom-btn-toolbar > .btn {
  margin-right: 1rem;
}

.dropdown-submenu-container {
  position: relative;
}
.dropdown-submenu-container a.dropdown-submenu::after {
  transform: rotate(-90deg);
  position: absolute;
  right: 6px;
  top: 0.8em;
}

.dropdown-menu-right .dropdown-submenu-container a.dropdown-submenu::after {
  transform: rotate(90deg);
  position: absolute;
  left: 0px;
  right: unset;
  top: 0.8em;
}

.dropdown-menu-end .dropdown-submenu-container a.dropdown-submenu::after {
  transform: rotate(90deg);
  position: absolute;
  left: 0px;
  right: unset;
  top: 0.8em;
}

.dropdown-submenu-container .dropdown-menu {
  top: 0;
  left: 100%;
  margin-left: 1px;
  margin-right: auto;
}
.dropdown-menu-right .dropdown-submenu-container .dropdown-menu {
  left: auto;
  right: 100%;
  margin-left: auto;
  margin-right: 1px;
}

.dropdown-menu-end .dropdown-submenu-container .dropdown-menu {
  left: auto;
  right: 100%;
  margin-left: auto;
  margin-right: 1px;
}

add bootstrap css  file index.js load css

import "bootstrap/dist/css/bootstrap.css";

Save and Update the file and test your project.Thanks

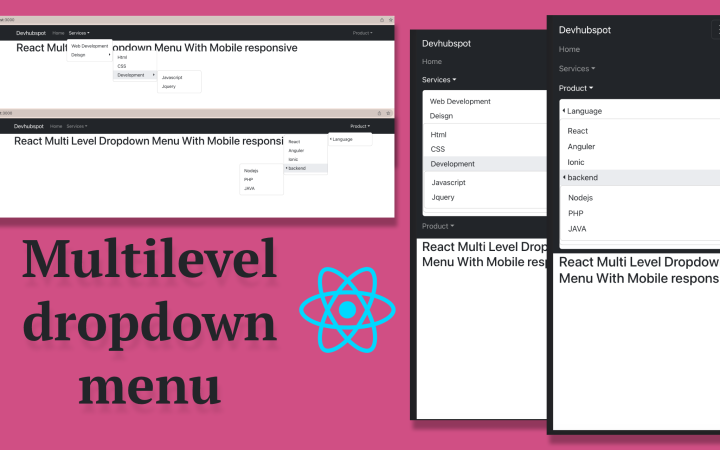

Output:
